Mirror’s Edge – Setting up the Mirror’s Edge Map Editor

This guide will help you set up the hidden map editor for Mirror’s Edge, so you can browse through the pre-built maps or even make your own!

مقدمة

This tutorial will help you set up the built-in map editor for Mirror’s Edge. Mirror’s Edge was built on Unreal Engine 3 and the developers weren’t so sneaky and forgot to remove the ability to access the level editor. The files required are not present so we need to acquire them from elsewhere.

ملحوظة, this guide applies to all versions of Mirror’s Edge, not just the Steam version. بالرغم من, the file directories I show here are specific to Steam.

Getting Required Files

To proceed, we’ll need to obtain two folders that contain the required files to boot up the editor. To get these files, you’ll need a copy of Unreal Tournament 3, أو, you can find them on the internet in places such as the Mirror’s Edge Archive.

Specifically, we’re looking for the folders wxRC and wxRes. With these two folders acquired, head to your Mirror’s Edge game directory. لي, and probably you, أيضاً, it’s located in

ج:\ملفات البرنامج (x86)\Steam\steamapps\common\mirrors edge\

then head into the Binaries folder.

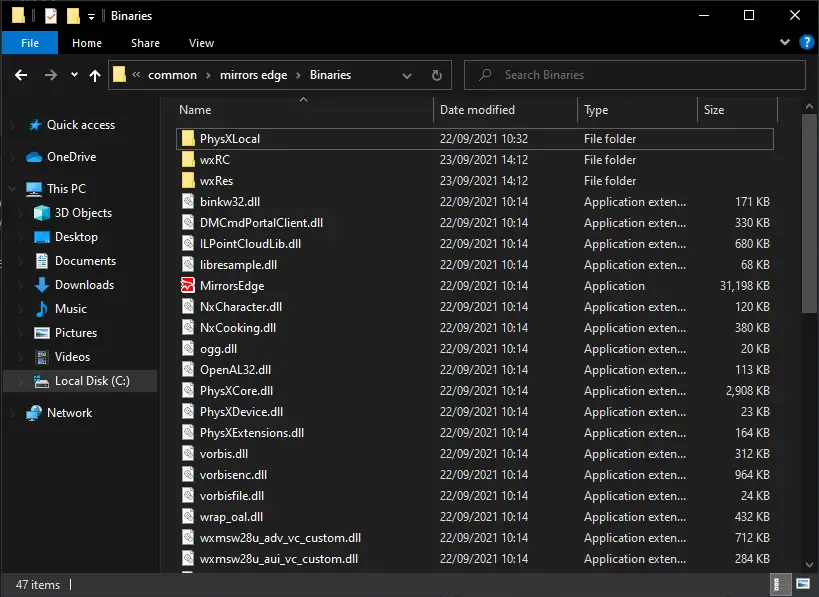

It’s here where you need to place the wxRC and wxRes files, as shown above.

Preparing Editor

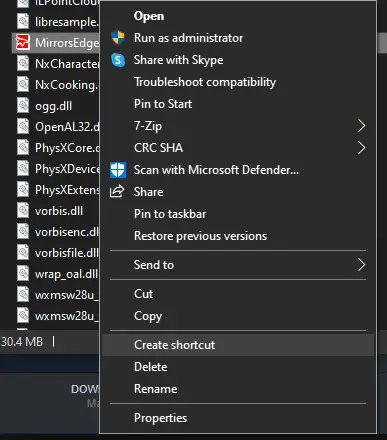

With the required files placed in the binaries folder, we now need to create a shortcut to the MirrorsEdge.exe file. We create a shortcut since that allows us to add some launch parameters that tell Mirror’s Edge to launch the editor. Right-click on the MirrorsEdge.exe and press ‘Create Shortcut’ as shown below.

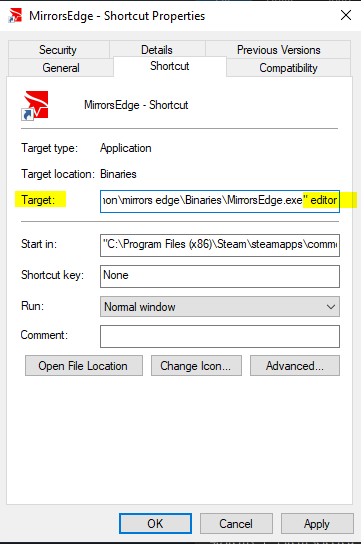

ثم, with the new shortcut, right click on that, and then select Properties. This will open a new window. We need to modify the ‘Target’ entry. Add a space between the executable path, and then type in ‘editor’, all lowercase, and no more spaces.

ثم, you can move this shortcut to wherever you want. شخصيا, I place it on the desktop, and I rename it to Mirror’s Edge editor. لكن, you can keep it in the Binaries folder if you like.

We’re not done yet, رغم ذلك. There is still a bit more work that needs to be done.

يثبت

Because we have ripped the editor files from UT3, they are not exactly designed to work with Mirror’s Edge. Fear not, رغم ذلك. We can still make maps as good as, if not better than the in-game maps, but this takes a bit of a work-around.

The first thing you need to do is go to your Documents folder and back up the Mirror’s Edge folder inside EA Games. It’s unlikely something will go wrong, but it’s better to be safe than sorry. Venture into the Mirror’s Edge folder, and then into TdGame.

Some interesting information about this folder. If you have ever downloaded mods for Mirror’s Edge and been told to place them into a ‘Published’ folder into your Documents, this is because the game reads any files from the Published folder instead of the main game, if the two files have the same name. على سبيل المثال, if you have a map called ‘Edge_p’ inside the Published folder, Mirror’s Edge will load the copy inside the Published folder instead of the standard Prologue. It means we don’t have to modify anything inside our game folder.

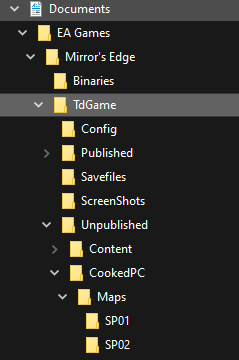

The editor works in the same way, but instead, it reads from an ‘Unpublished’ مجلد. Go ahead and create an ‘Unpublished’ folder inside the TdGame directory. This is crucial as failure to do so will mean you’ll overwrite files inside the main game folder. Inside the ‘Unpublished’ مجلد, create a folder called ‘CookedPC’, and inside that, create another folder titled ‘Maps’. If you look at the TdGame inside the main game folder, you’ll notice they follow the same line of folders.

There is another problem though. The editor will only load maps that follow the same naming convention as the main game. لماذا? I don’t know. It’s just another fault with using foreign editor files in Mirror’s Edge. This means you’ll need to follow the standard file tree as the same game when making maps. The community has done this for us, رغم ذلك. هذا article tells us all the folder names and map names. What I personally do, is I always create my maps as ‘Edge_p’. The prologue is boring, nobody needs it.

Inside the ‘Maps’ مجلد, create another folder named ‘SP01’. You’ll need to always save your map as ‘Edge_p.me1’, and NOT as a umap file. Mirror’s Edge ONLY READS .me1 files.

First Launch

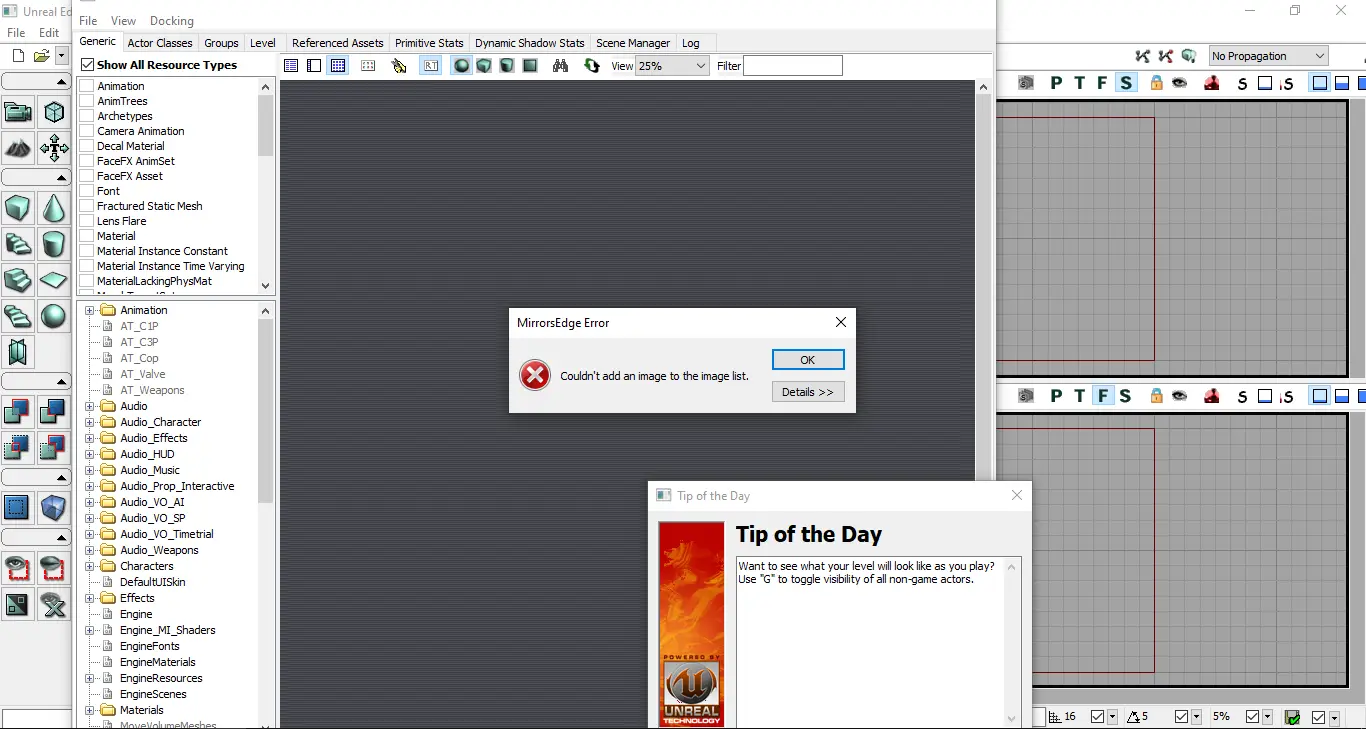

When you first launch the editor, you’ll see three windows. One, an error, اثنين, a Tip of the Day, وثلاثة, a content browser.

We can dismiss the error since it doesn’t affect anything. The tip never actually changes, and the content browser is not important right now. لكن, to access it again, press the button shown below (once it’s closed).

الآن, click File and then Open. If you did everything right, the Editor will normally open the ‘Unpublished’ folder inside your Mirror’s Edge document directory. This means you’re on the right track. If you want to get started making levels now, then great, you’re done!

To get started, press ‘New’ and then press OK. When the Editor prompts you to choose between Additive and Subtractive, you can leave it on Additive. Additive works better for Mirror’s Edge (in my opinion), but the difference is that you’ll be using the CSG: Add or CSG: Subtract in the lower-left corner for Additive or Subtractive. الآن, this is not a UDK tutorial, so it’s not my place to speak on that just yet.

Your journey begins now. Google ‘udk tutorials’ or ‘mirror’s edge editor tutorials’ for more help. ال Mirror’s Edge Modding wiki is a great place to get started.

Why are you still here? أوه, you want to browse the game’s pre-built levels. Alright, continue ahead.

Checking Built-In Maps (and other QOL Stuff)

لذا, you want to browse the in-game maps and not do any work. It’s alright. It’s pretty fun.

What you need to do is go to the Maps folder inside the (TdGame folder inside the CookedPC folder inside the) installation directory. لذا, if you’re like me, that’s at

ج:\ملفات البرنامج (x86)\Steam\steamapps\common\mirrors edge\TdGame\CookedPC\Maps

If you read the tutorial in full, you’ll know that I linked to the article on map names. أو, you can find it هنا. Create a folder inside your Unpublished directory called ‘SPxx’, with the xx replacing the number of the level you want to browse. على سبيل المثال, browsing any of the Shard levels would be SP09. ثم, head to the SPxx folder inside the installation directory, and copy the map into your Unpublished copy.

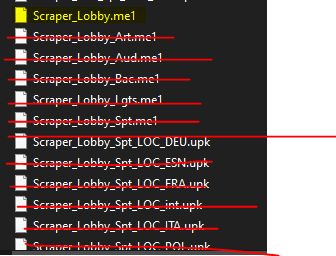

It can be tricky to differentiate which one to browse when you have six or seven copies of one segment, with things like ‘Bag’ or localisations. You want to copy either the basic one (e.g. Scraper_p or Mall_p) or the one which has NO ADDITIONAL information, like Scraper_Lobby.me1. In terms of Scraper_Lobby.me1, the ‘Scraper’ is the LevelName, while the ‘Lobby’ is the SegmentName. Using this logic, you only want .me1 files with LevelName_SegmentName.me1. Do not copy maps that have, على سبيل المثال, _Lgts.me1

أساسًا, just use a bit of common sense. On lower-end machines, you can adjust the quality in editor and in-game by clicking ‘View’ and then ‘Detail Mode’.
